The characters are easy to read, and the total flow rate can be checked in a glance.
Easy to Read
11-segment 8-digit LCD [First in the industry!*]

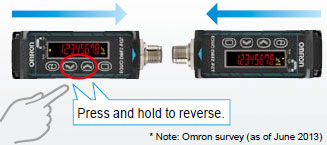

Display Reversal
You can reverse the display direction to match the installation direction.
Always use one of the specified installation directions.
High Accuracy
Highly Accurate Flow Measurements
An OMRON MEMS chip is used to achieve the highest accuracy in the industry* of ±2% F.S. (at 50 L/min or less).
Leakage Measurement
A high measurement accuracy of ±0.5% F.S. is achieved at a low flow rate of less than 50 L/min.
This allows you to identify the air flow that is discarded as leakage when machines are not operating to save money.
Zero Reset
You can use the zero reset to identify seasonal or day/night variations in the flow rates.
Other Features
Flow Straightener with Honeycomb Structure
A honeycomb structure effectively straightens the flow to keep pressure loss low.
Main Features
- One analog output
- Two pulse outputs
- RS-485 communications
- IP65
- Display
- Threshold values (peak, bottom, and leak)
- Peak/Bottom hold
- Auto-tuning
- Key lock
Feature Comparison
Tags: D6FZ-FGT Series
