• Standard configuration. These Fiber Units are mounted into a hole drilled in a bracket and secured with nuts.
• The Right-angle Model prevents snagging on the cable because the cable runs along the mounting surface.
Standard Installation
Threaded Models
Beam ImprovementsCylindrical Models
• Inserted where space is limited. (Secured using a set screw.)
• Ultramate space-saving by micro-fiber head. (1 dia. × 10 mm
• Ultramate space-saving by micro-fiber head. (1 dia. × 10 mm
Saving Space
Flat Models
Sleeve Models (Close-range Detection)
• Sleeve Fiber Units allow detection away from the point of installation for stable close-range detection of small objects.
• The shape of sleeve can be changed freely.
Beam Improvements
Small-Spot, Reflective (Minute Object Detection)

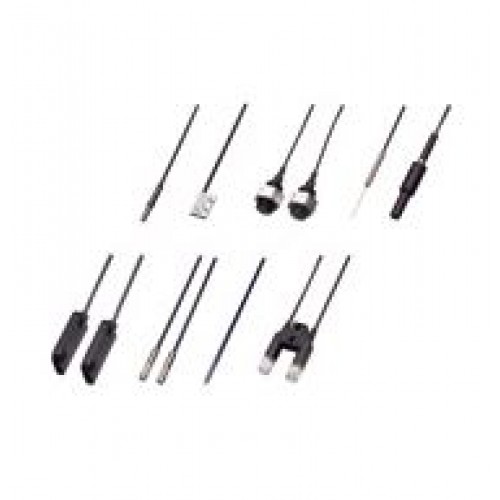

Tags: E32 Series
