Manufacturers now need to manage globalization and flexible production.
That's why we have developed our F3SG-SR/PG Series.
This series offers a complete lineup of light curtains that comply with global safety standards and a wide range of functionality that covers all aspects from design through to maintenance.
The F3SG-SR/PG Series helps manufacturers build safety systems.
This series redefines safety at manufacturing sites
Design -Easy design of line safety-
One series covers all protection applications—from machine openings to perimeters of equipment
Standardize mechanical design across production lines and eliminate complexity of selection and design.
Common accessories including cables and brackets *
The light curtains share common accessories for ease of design and retrofit ting of production lines.
Helps build safety systems for machines all over the world
Design -Flexible design for equipment-
A broad lineup for flexible production line design
Create flexible design plans to suit your equipment requirements.
Long operating range thanks to unique optical design
The long-distance sensing capability enables reliable detection even in harsh environments.
Omron’s unique compact design

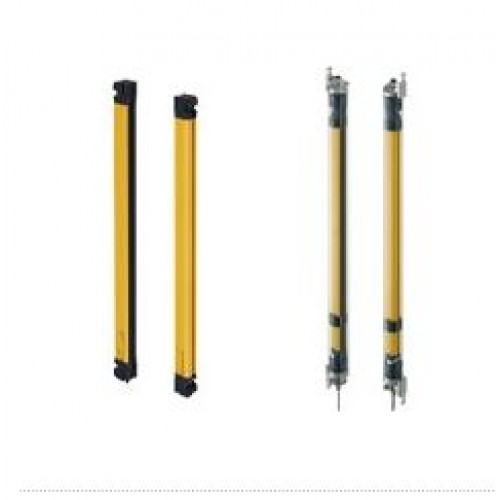

The F3SG-SR Safety Light Curtain and F3SG-PG Safety Multi-Light Beam share the same compact housing.
This makes mechanical design more flexible.
* Compared with OMRON Robotics and Safety Technologies, Inc’s PA46 Perimeter Access Guarding Device. (Based on
Omron investigation in June 2018)
This makes mechanical design more flexible.
* Compared with OMRON Robotics and Safety Technologies, Inc’s PA46 Perimeter Access Guarding Device. (Based on
Omron investigation in June 2018)
Easy line layout changes
Simply replace a light curtain using the same accessories because the F3SG-SR Series and F3SG-PG Series share the same housing. There is no need to select and install optional accessories for a new light curtain.
Example: In order to secure a working space by installing the light curtain closer to the machine,
the perimeter guarding model is replaced with the hand protection model
Example: In order to secure a working space by installing the light curtain closer to the machine,
the perimeter guarding model is replaced with the hand protection model
Just replace the light curtain with the same protective height*
Flexible installation
Perfect fit
Protective heights are available in increments of 40 mm up to 1,000 mm*. The perfect protective height for any protected area ensures safety and eliminates the need for additional measures.
Protection without dead space*
The F3SG-SR Series eliminates dead space that previously existed even when light curtains are series-connected or U-shape connected. Safer systems can be designed.
Simple wiring for flexible design
The F3SG-PG-C Perimeter Guarding Passive Mirror requires wiring of only the emitter/receiver.
The use of mirror columns allows wiring at one location for protection around perimeters of equipment. They reduce wiring duct design and wiring time.
Two different synchronization systems
Choose from two different methods of synchronization between the emitter and receiver to suit your equipment .
Set-up -Simple beam adjustment-
Color indication of beam status for quick and easy beam adjustment
Reduce beam adjustment time.
Area Beam Indicator (ABI) for an at-a-glance check of beam status [Patent pending]
The ON or OFF state of the light curtain and low light intensity can be checked.
The ABI also facilitates fine adjustment of beams for long-distance sensing.
Set-up -Easy installation and angle adjustment-
A variety of optional accessories for easy installation and angle adjustment
Reduce installation time and easily adjust beams after installation without relying on the expertise of experienced engineers.
Easy beam adjustment after installation
Set-up -Various options to reduce wiring-
Reduced wiring system for various equipment
Wiring work during line installation and maintenance can be greatly reduced.
Simple wiring around large equipment
One cable connection to control panel
Options provide simple wiring for muting.
Operation -Reduction in unwanted machine stoppages-
Robustness for operation in harsh environments
Specifications suitable for use in any environment contribute to stable operation.
Light curtains tend to malfunction in harsh environments where safety measures are required.
Maintenance -Maintenance with no special skills required-
Easy maintenance
Even inexperienced operators can easily check status and replace light curtains.
Easy error diagnosis with clear color indicators
The light curtain status can be checked at a glance.
For information on other indicators, refer to Indicator or Troubleshooting on Catalog.
Back up and restore settings with Intelligent Tap
Replacement and set ting time during maintenance can be reduce d to 1/10 or less*.
Maintenance -Quick maintenance through ICT-
Preventive maintenance
The status of the light curtain is monitored, and the abnormal state is displayed.
This helps minimize machine downtime.
