The Sensor provides multiple sensing functions.
You can identify compressed air conditions with just one Sensor.
Multi-sensing

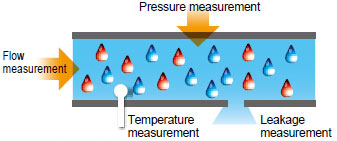

Simultaneous Measurement of Flow, Pressure, Leakage, and Temperature
Simple Setup

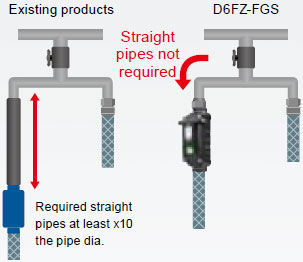

Mountable to Curved Pipes or Couplers [Silencer]
The built-in silencer eliminates ultrasonic noise and turbulence. It eliminates the need for straight pipes to make installation work easy.
High Accuracy

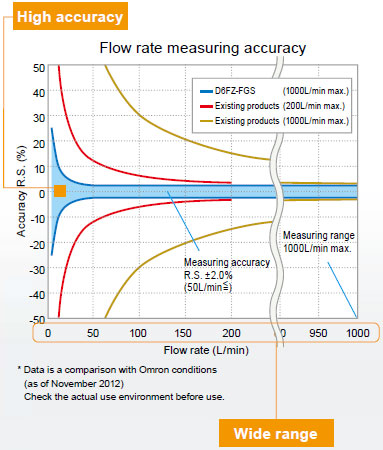

Highly Accurate Flow Measurements
High measuring accuracy of ±2% R.S. (at 50 L/min or less) is achieved.
Flow Measurements over a Wide Range
A wide measurement range of 1 to 1,000 L/min is achieved.
Resists Oils and Mist [Ultrasonic sensor]
A built-in ultrasonic sensor is used for flow measurements.
With high resistance to rusty pipes and oil flooded compressors, you can install the Sensor almost anywhere.
Main Features
- Two analog outputs
- Two pulse outputs
- RS-485 communications
- IP64
- Operation indicator
- Threshold values (peak, bottom, and leak)
- Alarm hold
Feature Comparison
Tags: D6FZ-FGS Series
