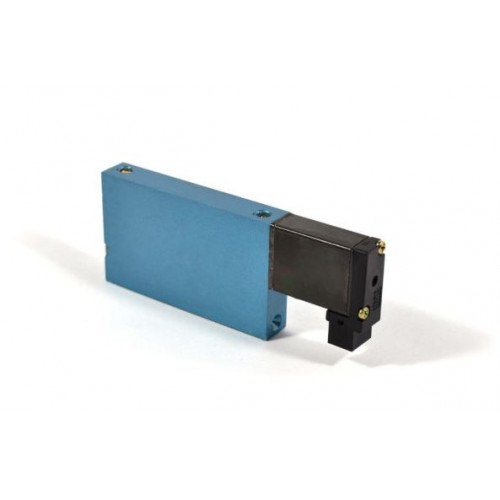

The MAC 42 Series is a high flow 10mm solenoid pilot operated spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting.  The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

Cv (Max):  0.40

Port Sizes:  #10-32-1/4″

Configurations:  Inline – Manifold:  Plug-in/Non Plug-in
